Industry: Education

Specifications

Possible LEED Credits:

Low emitting materials and certified wood
Floorscore Certified

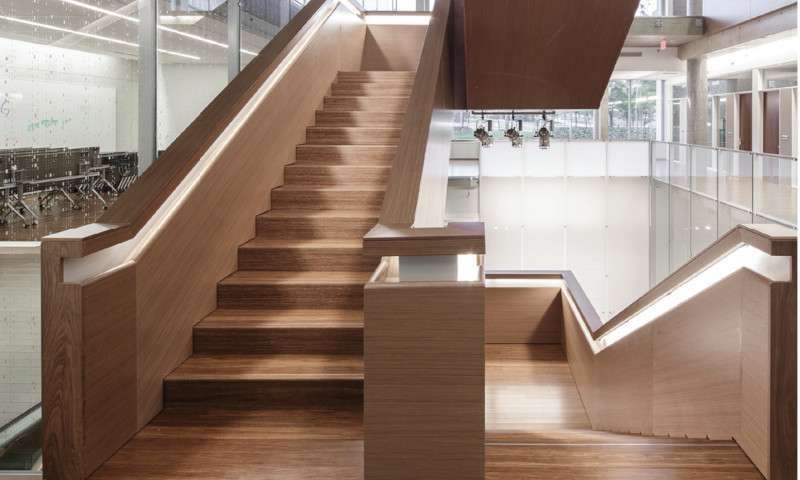

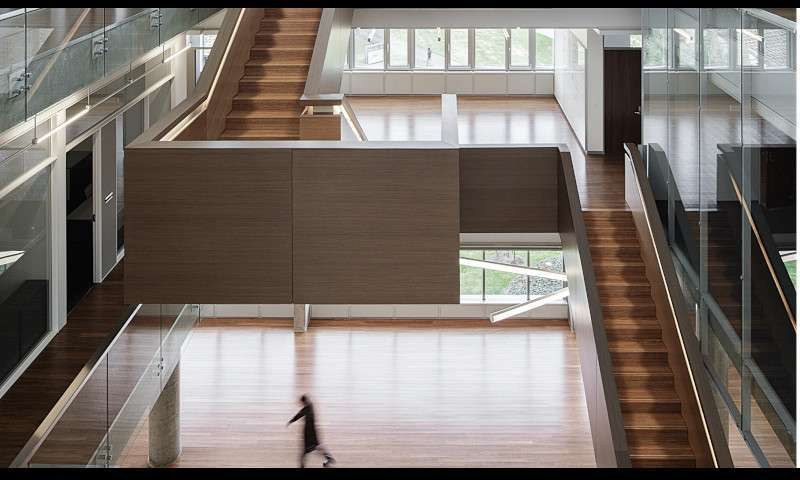

University of Waterloo
Strand Bamboo Veneer

Dimensions:

3/4” x 48” x 96”
19mm x 1219mm x 2438mm (*mm tolerance +/- .5mm thickness)

Construction:

Three-ply, cross core construction.

Working with Plyboo:

A worksheet is provided with each panel containing useful tips and information and is also available on our website at plyboo.com/downloads.

ASTM E84: Surface Burning

•Linear Expansion (3-ply): Parallel -0.09% / Perpendicular -0.07%
•Thickness Swell (3-ply): -0.3%
Screw Hold (3-ply) (face/back/edge)
• 1009lbs/ 681 lbs/ 516 lbs average

ASTM D4442: Moisture Content

6-9% average

ASTM D4442: Moisture Content

6-9% average

ASTM D 6007-02: Formaldehyde Concentration in Air from Wood Products, small
chamber test

Plyboo = 0.004 ppm (surpasses CARB II standards, 0.05ppm & ULEF
standards of 0.04ppm)

Edge Grain Bamboo Plywood

Dimensions:

3/4” x 48” x 96”
19mm x 1219mm x 2438mm (*mm tolerance +/- .5mm thickness)

Construction:

Three-ply, cross core construction.

Working with Plyboo:

A worksheet is provided with each panel containing useful tips and
information and is also available on our website at plyboo.com/
downloads.

ASTM E84: Surface Burning

Class C

ASTM D1037: Dimensional Stability

•Linear Expansion (3-ply): Parallel -0.04% / Perpendicular -0.07%
•Thickness Swell (3-ply): -0.13%
Screw Hold (3-ply) (face/back/edge)
• 742 lbs/ 831 lbs/ 860 lbs average

ASTM D4442: Moisture Content

6-9% average

ASTM D 6007-02: Formaldehyde Concentration in Air from Wood Products,
small chamber test

Plyboo = 0.004 ppm (surpasses CARB II standards, 0.05ppm &
ULEF standards of 0.04ppm)
