Industries: CommercialLaw Offices & Office Building

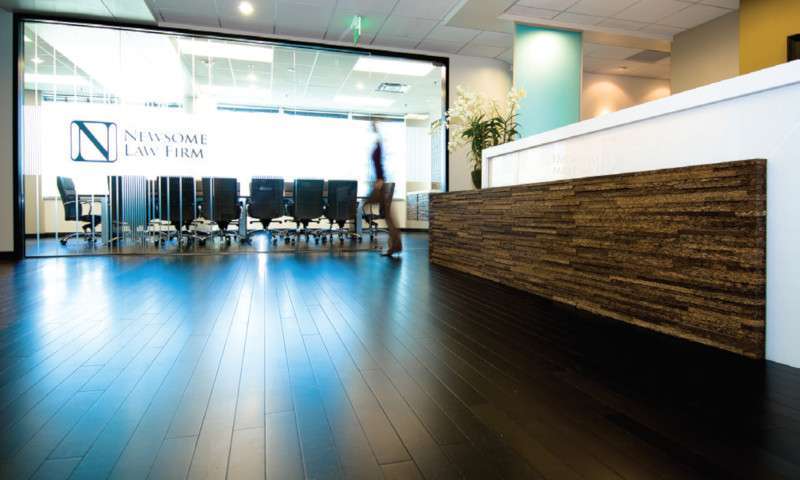

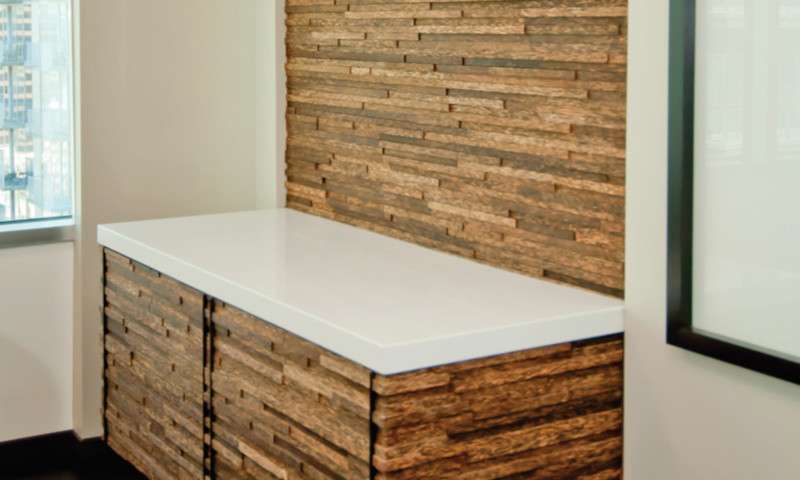

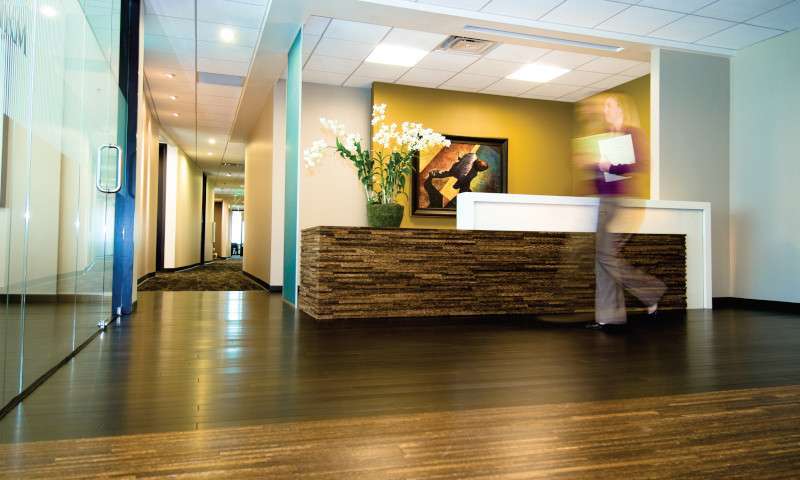

Newsome Law Offices
Possible LEED Credits:
IEQc4.4: Low Emitting Materials
IEQc4.3: Low Emitting Materials
CA Section 01350: Passed
Other: No added urea formaldahyde
Dimensions:
5/8″ X 6″ X 48″ – 19mm x 152mm x 1219mm
Construction:

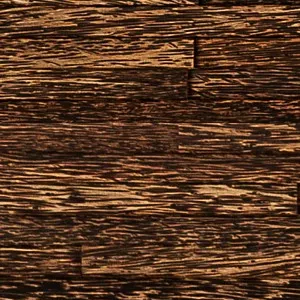

Deco Palm paneling is laminated at various elevations to give it a three
dimensional texture . The palm is then fastened to a palm backer board for
support. There is an overlap along the length and at the ends of each
panel to create a seamless appearance . The surface is treated with a light
oil finish to give it a natural look and feel.
Installation:
The Deco Palm panel installs easily horizontally or vertically. The overlap seams
allow for an easy install with glue and pin-nail technique .
ASTM E84: Surface Burning
Class C
ASTM D4442: Moisture Content
6 – 9% avg
Dimensions:
5/8″ X 3″ X random – 16mm x 76mm x random
Installation:
Tongue and groove, nail or glue down
ASTM E648: Critical Radiant Flux
Class 1
ASTM D1037: Dimensional Stability •
• Linear Expansion: Par. -0.01%, Per. -0.30%
• Thickness Swell: -0.48%
• Hardness (Janka Ball Test): 1,295 1bf (avg)
ASTM D2394 : Coefficient of Friction
Static Coefficient/ Dynamic (Sliding) Coefficient: 0.437 / 0.376
ASTM D3359: Adhesion by Tape Test
Class 48
ASTM D4060 : Taber Abrasion
Average: 22,000 cycles
ASTM: 4442 : Moisture Content
6-9% average
ASTM D5116-06 : Organic Emissions
[CA Section 01350]
Classroom scenario/ Office scenario : Pass/ Pass
