Industries: CommercialLaw Offices

Specifications

Possible LEED Credits:

IEQc4.4: Low Emitting Materials
MRc6: Rapidly Renewable Materials
MRc7: Certi!ed Wood
CA Section 01350: Passed
Other: No added urea formaldehyde

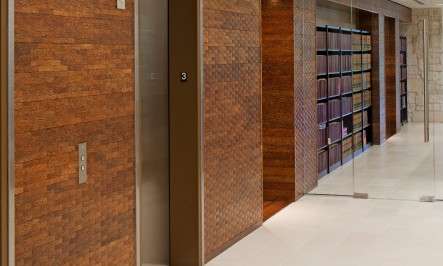

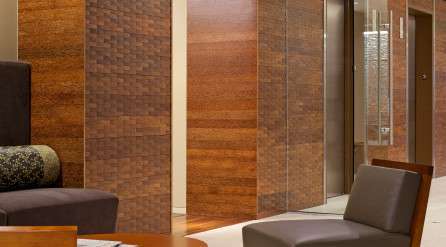

Bickerstaff Heath Delgado Acosta LLC

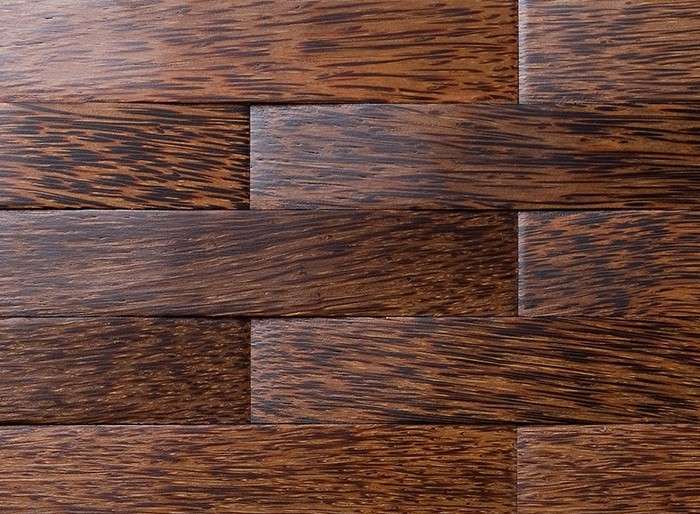

Durapalm Woven Palm Paneling

Dimensions:

5/8” x 6” x 48”
19mm x 152mm x 1219mm

Construction:

Woven Palm paneling is laminated at various elevations to give it a three dimensional texture. The Palm is then fastened to a backer board for support. There is
an overlap along the length and at the ends of each panel to create a seamless
appearance. The surface is finished with a polyurethane to bring out the depth
and color of the Coconut Palm.

Installation:

The Woven Palm panel installs easily horizontally or vertically. The overlap seams
allow for an easy install with glue and pin-nail technique.

ASTM E84: Surface Burning

Class C

ASTM D1037 Dimensional Stability:

  • Linear Expansion: -0.03% parallel average / -0.93% perpendicular average
  • Thickness Swell: -0.80% average

ASTM D4442: Moisture Content:

6-9% average

ASTM D5116-06: Organic Emissions
[CA Section 01350]

Classroom scenario / Office scenario: Pass / Pass

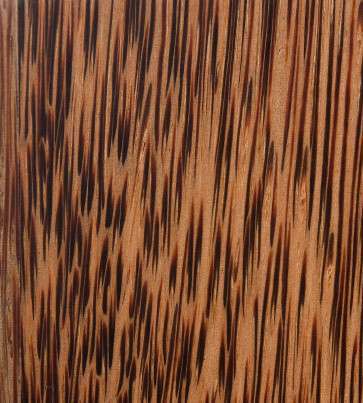

Durapalm Palm Edge Grain Palm Plywood

Dimensions:

¾” x36” x 96”
19mm x 914 x 2440mm

Construction:

Three-ply, cross core construction.

Working with Plyboo:

A work sheet is provided with each panel containing useful tips and information
and is also available on our website at www.plyboo.com/downloads

ASTM E84: Surface Burning

Class B

ASTM D1037 Dimensional Stability:

  • Linear Expansion 0.04% parallel; 1.44% average perpendicular
  • Thickness Swell 1.73% average

Screw Hold (face / edge) : 300 lbs. face average / 330 lbs. edge average

ASTM D4442: Moisture Content:

6 – 9% average

ASTM D5116-06: Organic Emissions
[CA Section 01350]

Classroom scenario / Office scenario: Pass / Pass
